3. Settings

Pressing the cog on the main page will take you into the settings pages.

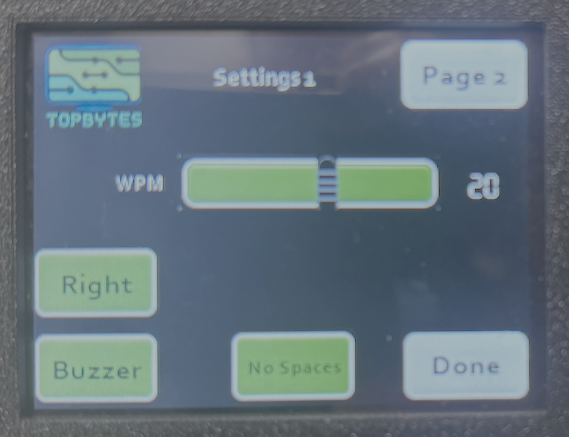

3.1. Page 1

../_images/settingsP1.png

  • WPM, Words Per Minute, Move the slider to change the length of a dot, which in turn will determine the length of everything else.

  • Right/Left, Switch the paddle for Left and Right handed, ie which side of the paddle is a dot and which is a dash

  • Spaces, add a space to the output when the delay between characters is long enough.

Select the Done, button to return to the main page. Pressing Page 2 will take you to the next page of settings.

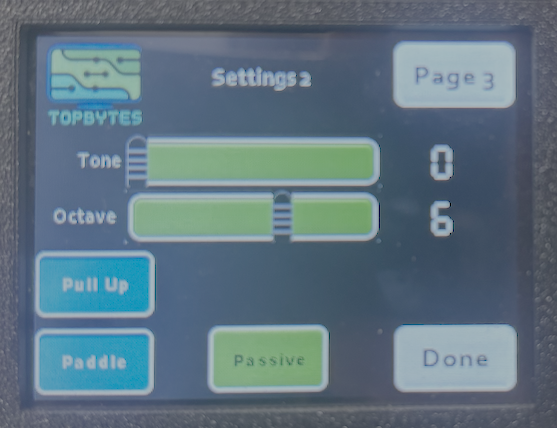

3.2. Page 2

../_images/settingsP2.png

  • Tone, Select the tone for the morse buzzer

  • Octave, Adjust the octave of the morse buzzer

  • Pullup/down, By default the Morse Trainer is checking for the paddle to connect to ground when a dot or dash is keyed.

  • Paddle/Straight, Select between using a Paddle and a straight key.

  • Passive/Active, Select between Passive and Active Buzzer.

Note

Tone and Octave settings are only valid when using a "Passive" buzzer and hidden otherwise.

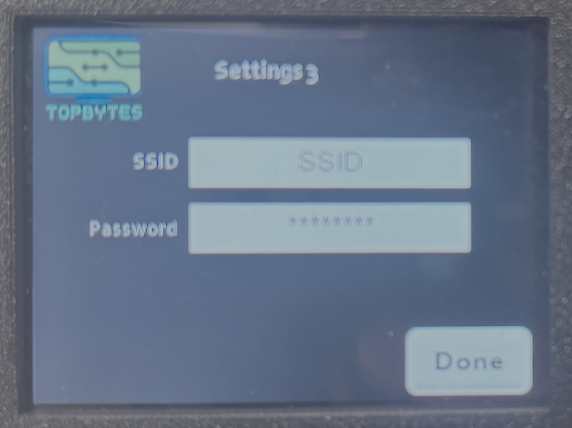

3.3. Page 3 - WiFi Settings

../_images/settingsP3.png

Configuring WIFI, select on the "SSID" and "Password" boxes to enter the credentials to connect to your WIFI network.
